200000392 Waters ACQUITY UPC2 – QDa System Startup Kit

WAT040659

1

NUT, HEX 6-32 X 5/16

Secures the standoffs to the mounting bracket.

WAT046463

1

SCREW, 6-32, BINDER HEAD, PHILLIPS

Screws in to standoffs to provide a lip for the Ethernet box mounting slot to sit in.

WAT078180

4

Rubber Bumper 0.62 DIA. X 0.75

Tall feet for CM-A / CM-AUX to support standalone turret

WAT411425

4

Screw, M4 X 25, Pan Head, TORX, SST

Mounting hardware for CM-A / CM-AUX tall feet

205000355

1

ACQUITY UPLC Multi Det. Drip Tray

Attaches to bottom of detector to manage leaks in multiple detector configurations

205000499

1

Kit, Swivel Drain, Stand-Alone, Black

Standalone turret drain for CM-A/ CM-AUX when above detector or on desk

400010228

1

BRACKET, MOUNTING, ETHERNET, GB, SM

Bracket used to mount Ethernet switch to rear of Sample Manager

405017393

1

Fitting, 1/8 npt male, female,peek

Extension for Auxiliary drip tray

410000704

4

Y-Connector, Barbed, 1/4" ID TUBE

Joins 1/4 " ID waste lines to consolidate waste management tubing

410004972

4

Fitting, 90 deg elbow, hdpe

Elbow for waste management over table

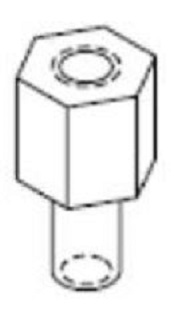

410007820

2

STANDOFF, M/F, 6-32, .25 LG, .25 THD

With the screws, provides a mounting position for the Ethernet switch mounting slots.  Standoffs are inserted in to slots in mounting bracket.

430004080

1

Assy,  Tube, SST/AU,      0.007"ID X 22.5"Lv

Connects convergence manager P6 to CM-A inlet switching valve center port

430004140

1

Assy,. Tube, PEEK,        0.062 x 0.007 x 23.0 LG

Connects CM-A outlet switching valve center port to PDA inlet port

441000456

1

Ethernet Patch Cord, Shielded 5 FT.

Cable to connect Ethernet switch to Sample Manager

700001796

1

Tubing, 0.375 OD X .250 ID, TYGON, 5 FT

5 feet of 1/4" ID waste tubing for waste management

725000561

1

ETHERNET SWITCH, 10/100/1000B-T 8 PORT

Provides additional Ethernet ports to support more than 5 instruments
