200000381 Waters FlexInject Dual Injectors Startup Kit
ENVIRONMENT
- Prep 150 LC System
- Waters AutoPurification System
- Preparative System
CONTENT
Waters FlexInject Dual Injectors Startup Kit, Part Number 200000381
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |
Kit, Ferrules Rheodyne, 10pk |
 |
10 Pack of Rheodyne Ferrules for Sample Loops. |
|
|
1 |
Kit, Compression Screw, Medium, Rheodyne, 10pk |
 |
10 Pack of Rheodyne Compression Screws for Sample Loops. |
|
|
1 |
Kit, Ferrules, 10pk |
 |
10 Pack of Waters Ferrules for Sample Loops. |
|
|
1 |
Kit, Compression Screws, 10pk |
 |
10 Pack of Waters Compression Screws for system tubing. |
|
WAT023021 |
1 |
Clamp, Hose, ¼ |
 |
Clamp for Drain Tube. |
|
WAT025592 |
1 |
Tube, 1/16 OD x .020 ID x 60 in |
 |
Fluid Interconnection from Pump to Injector. |
|
WAT051329 |
1 |
Tube, 1/16 OD x .040 ID x 60 in |
 |
Fluid Interconnection from Pump to Injector. |
|

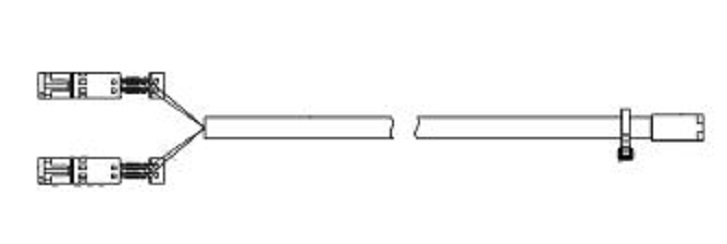

WAT073618 |
1 |
Cable Assy., Injectors |
 |
Connects Injectors to Inject Start. |
|
WAT250329 |
1 |
Vial, 20 ML (4 Dram) |
 |
Waste Bottle. |
|
WAT410430 |
2 |
Washer, M4, Flat, Large |
 |
For Mounting to Side of Instrument. |
|
405002961 |
1 |
Drain, Drip Tray |
 |
Pressed into Drip Tray for Drain Tube. |
|

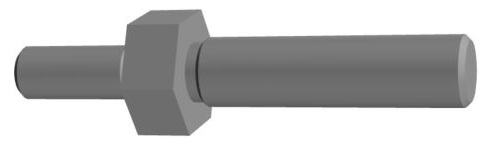

405003025 |
2 |
Standoff, Male, M4 to M5 |
 |
For Mounting to Side of Instrument. |
|
410000799 |
2 |
Clamp, Wire |
 |
Cable Routing Clips. |
|
410001145 |
2 |
Nut, Round, Knurled, M5 |
 |
For Mounting to Side of Instrument. |
|
410002750 |
10 |
Bumper, .50DIA x .25H |
 |
Spacer required when attaching to 2545Q |
|
|
1 |
Drip Tray |
 |
Installed under FlexInject Housing for Drainage. |
|
430000118 |
1 |
Assy, Tubing, Hi-Flow, .020 ID 48” Long |
 |
Tubing to Column. |
|
430000763 |
48 in |
Tubing, Polyethylene, ¼” |
 |
Drain tube for Drip Tray. |
|
430001025 |
1 |
Assy, Tubing, Hi-Flow, .040 ID 48” Long |
 |
Tubing to Column. |
|

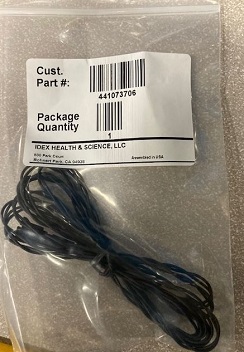

441073706 |
2 |
Cable, Extension, Valve Indicator Switch |
 |
Inject Start Signal Contact Closure. |
