200000331 Waters Trap Valve Manager Startup Kit
ENVIRONMENT
- ACQUITY UPLC M-Class
- ACQUITY UPLC M-Class Trap Valve Manager (TVM)
CONTENT
Waters Trap Valve Manager Startup Kit, Part Number 200000331
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
WAT025249 |
6 |
Rivet, snap |
 |
Used to install waste drain tray to plate |
|
WAT034347 |
1 |
Screw, metric, hex, M4 x 6 |
 |
Used to install anti-tip feature to the back of the TVM |
|
|
4 |
Screw, m4 x 25, pan head, torx, sst |
 |
Replace existing foot screws when adding long bumper |
|
|
1 |
Kit, swivel drain, stand-alone, black |
 |
Install the swivel drain turret to the supplied column manager drip tray |
|
289008640 |
4 |
Assy, rigid foot, .75 tall |
 |
Install bumper on top of existing feet |
|
400005355 |
1 |
Plate, module connect |
 |
Anti-tip feature to connect the TVM to the SM |
|
400006073 |
1 |

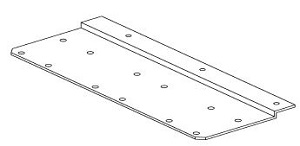

Plate, drip tray mount |
 |
Attach to base of chassis when installing waste drain tray |
|
410001320 |
1 |
Fitting, 1/4 barb x 18-27 npt |
 |
Install in front of waste drain tray |
|
410004900 |
2 |
Screw, m5 x 10, button hd, ss |
 |
Used to install column heater assembly onto TVM chassis |
|
415000715 |
1 |

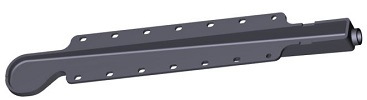

Tray, waste drain |
 |
Install to tray mount plate using rivets |
|
415001787 |
1 |
Tray, drip, leak sensor cma |
 |
Used when stacking CM-AUX on TVM |
|
1 |
Ethernet patch cord, shielded, 2ft. |
 |
Connects Ethernet switch to workstation |
