200000316 Waters ACQUITY UPLC I-Class Sample Manager Fixed Loop (FL) Startup Kit
Article number: 262374
ENVIRONMENT
- ACQUITY UPLC I-Class PLUS
- ACQUITY UPLC I-Class PLUS Sample Manager Fixed Loop (SM-FL Plus)
CONTENT
Waters ACQUITY UPLC I-Class Sample Manager Fixed Loop (FL) Startup Kit, Part Number 200000316
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |
6 Pin Connector |
 |
Connects to the 6” event cable |
|
|
2 |
Holder, 48 Well, 2ml, Vial |
 |
Holds 2ml sample vial |
|

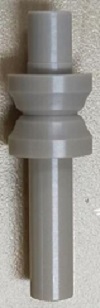

405013532 |
1 |
Calibration Pin, RZZ Mechanism |
 |
Used for orienting sample tray relative to datum base. Calibrate Rotary Tray (console needs to be in “Service Mode” to access this function). Pin is stored in designated pocket in door insulation after installation of SM. |
|
415001552 |
1 |
Curtain, Fluidics Drip tray |
 |
Install onto front of fluidics drip tray |
|
430002491 |
1 |
Tube Assy, Strong Needle Wash (White) |
 |
Connect in degasser SNW (White) |
|
430002680 |
1 |
Tube Assy, Weak Needle Wash (Orange) |
 |
Connect to degasser WNW (orange) |
