200000309 Waters ACQUITY UPLC with 2D Technology System Startup Kit

289002414

1

Assy., Bottle Tray

Placed on top of the either of the ACQUITY instrument stacks.

400002298

1

Multi-tool, Collet & Comp. Screw, HPFT

Fitting Removal and Maintenance Tool.

405003287

5

Fitting, 10-32, One-Piece, Modified

Used for low pressure fluidic connections.

405004241

1

COLLET, HPFT

Component of Re-useable Fitting.

405005721

1

Screw, Comp, HPFT, Gold Pltd., (w/Holes)

Component of Re-useable Fitting.

410000704

2

Y-Connector, Barbed, ¼” ID Tube

To connect the waste lines together.

410000868

8

¼-28 Plug Fitting

Used to plug unused degasser ports on Solvnet Manager.

410001365

2

Screw, M2.5 X 8 SKT HD Cap, SS

Used to attach valve pods to Column Manager valve drivers.

415000786

3

Ferrule, Peek, 1/16, HPFT

Component of Re-useable Fitting.

430000617

48”

Tubing, ETFE, .020 ID X .062 OD

Used for process waste line.

430002582

2

Assy, Welded Tube, SS, 14.5 LG, HP

Used for connecting Sample Manager to valve and valve to column.

430002599

2

Assy, Welded Tube, SS, 19.0 LG, HP

Used for connecting column outlet to valve.

430002717

2

Assy, Welded Tube, SS, 22.5 LG, HP

Used for connecting column outlet to valve or detector.

430002983

2

Assy, Welded Tube, SS, 6.0 LG, HP

Used for connecting ports on the Column Manager valves together.

615004296

1

Label, Valve Position, CM-A

Magnetic label placed on the backside of the CM-A cover.

700002635

1

PKG 10 Two Piece Ferrules

Used for fluidic connections.

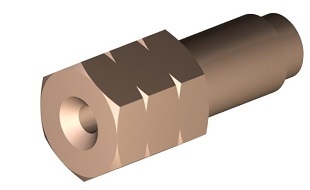

700002645

1

PKG 10 10-32 Gold Compression Screws

Used for fluidic connections.

700003799

1

Tube, .062 X .004, Peek, 60"

Used to connect Column Manager to mass spectrometer or detector.
