200000278 Waters ACQUITY UPLC bioSample Manager – (FTN) Startup Kit
Article number: 267329
ENVIRONMENT
- ACQUITY UPLC H-Class PLUS Bio
CONTENT
Waters ACQUITY UPLC bioSample Manager – (FTN) Startup Kit, Part Number 20000027
| Part Number | Quantity | Item | Image | Description/Location |
|---|---|---|---|---|
|
|
1 |
6 Pin Connector |
 |
Connects to the 6” Event cable |
|
|
2 |
Holder, 48 Well, 2mL Vial |
 |
Holds 2mL sample vials. |
|

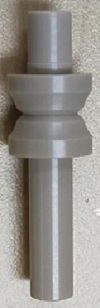

405013532 |
1 |
Calibration Pin, RZZ Mechanism |
 |
Used for orienting sample tray relative to datum base and calibrating position of Needle Carriage. Calibrate Rotary Tray (console needs to be in “Service Mode” to access this function). Pin is stored in designated pocket in door insulation after installation of SM. |
|
415001552 |
1 |
Curtain, Fluidics Drip Tray |
 |
Install onto front of fluidics drip tray. |
|
430002464 |
1 |
Tube Assy, Sample Manager Purge, BIO |
 |
Connect in QSM degasser. |
