200000243 Waters 2545/2555 Quaternary Gradient Module Startup Kit

WAT023486

1

Kit, Hardware, Helium

Used to adapt the Helium Supply Source to the Sparge Valve Inlet Bulkhead port.

WAT271053

1

Syringe, 30mL, Plastic

When connected to Inlet Manifold Valve (Load Position) solvent can be pushed into Pump Head for priming.

289000858

1

Assy, Tool, Removal & Insertion, .280 Dia. Seal

Used for Plunger Seal removal or Rotor Vent Valve Seal Removal.

289002369

1

Compression Screws, Gold, 5-Pack

Fittings for sparge tube. Note: Ferrules are in helium kit WAT023486).

289004136

1

Assy, Tube, Sparge

Connects to Sparge outlet fitting (supplies helium to solvent Reservoirs).

323000447

2

Connector Shell, 12 pos

Shields I/O Connector, on Rear Panel.

330000102

2

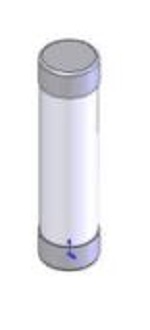

Fuse, 10A, 5MM X 20MM, SLO Blow

Use for rear panel AC Filter assembly.

410000697

4

Ferrule, Front, .25 in OD Tube

Spare Ferrule for Solvent Inlet Tube.

410000698

4

Ferrule, Back, .25 in OD Tube

Spare Ferrule for Solvent Inlet Tube.

410002865

2

Fitting, 1/8 OD TUBE, TO 1/8 MALE NPT

Fittings for use with Prep Degasser

415000878

1

Drip Tray, Top

Used for leak management with optional detector or pump.

430000574

1

Assy, Tube, System Outlet

Used for connecting the 2545 Filter outlet port to the injector inlet port.

430001022

2

Tubing, .38"OD X .25"ID X 60”L

Drain line for front Drip Tray.

430001856

73.5 in

Tubing, 3/16"OD X 1/16" ID, TYGON 2275

Seal wash outlet line, connects to left pump head (left side).  Press into hole onto barbed fitting.

430002079

1

Assy, Tube, 1/4" Solvent Inlet

Solvent inlet lines connected to the inlet manifold ports.

430002124

1

Assy, Tube, Priming

Attaches to Left side of Inlet manifold Valve and syringe for priming.

430002131

1

Assy, Tubing, Seal Wash Inlet

Connects to Seal Wash Pump Inlet.

430002144

1

Assy, Tube, Sample Loading

Connects to Left side of Inlet Manifold Valve for direct sample loading through pump.

430002175

1

Assy, Tubing, Vent Valve to Waste

Connects Vent Valve port 3 to waste container.

430002199

1

Tube, .062 X .040 X120 inch L

Used to connect Sparge Inlet Bulkhead Union to helium supply.

441000372

1

Cable, Ethernet Patch, Shielded, 10 ft.

Used to connect the 2545Q to the Ethernet Hub.

441000373

2

Assy, Event Cable 6 ft.

Used for timed events triggering from the rear of the 2545Q.

441000815

1

Cable, Ethernet, Crossover, Shielded 10 ft.

Used to connect the 2545Q directly to the computer.

600000451

1

Grease Packet, 0.5 OZ

Used for lubrication of the Sapphire Plunger base during replacement.

605000106

1

Forceps, Nylon, Reinforced

Used to replace the seal on Vent Valve.

700005115

1

MARKER SET, 1/4 TUBING, QGM, PKG 2

Used to identify the tubing at the solvent bottle.
