200000188 Waters ACQUITY UPLC Binary Solvent Manager Series Startup Kit

WAT041958

1

Luer Needle Assembly

Assists in Priming Pump.

WAT212369

4

Bumper, Tapered, Round

Replacement Anti-Skid Pads for Large Feet.

WAT271053

1

Syringe, Plastic

Used to pull Mobile Phase (e.g. water/IPA) through the Inlet of the Pump during Initial Startup to wet the Check Valves.

WAT411408

4

Screw, M4 x 8

To Fasten 415000454 to Chassis.

323000262

2

Connector, Plug, 12 Position

For Event Cable Connections.

323000447

2

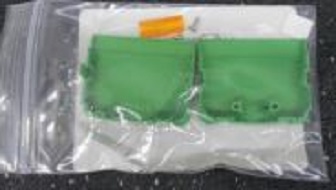

Connector Cover, 12 Position

ESD Protective Cover for 323000262.

405003608

2

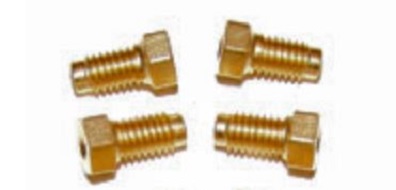

Screw, Compression, 10-32, ¼ Hex 304 SS, Gold PLT

Spare 10-32 Compression Screws.

410001281

1

Union, 1/4-28, thru

For use in systems with only 5 degasser channels. Union is plumbed in place of where the 6^th degasser channel (Strong Needle Wash) would otherwise be.

410001349

2

Ferrule, Set, .062, Two-Piece

Spare Two-Piece Ferrules.

410001380

1

Adapter, Female Luer to Barbed

Assists in Priming Seal Wash Outlet Tubing.

410001724

4

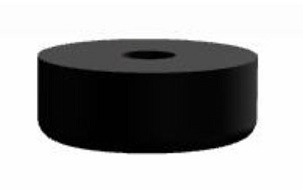

Foot, Rubber, .75Dia x .28 High

To be used with the Sample Organizer.

430000604

60"

Tubing, .375 OD, Tygon

Drip Tray Drain Line.

430001195

4"

Pharmed Tubing, .156 OD x .031 ID

Assists in Priming Pump.

441000373

1

Assy., Cable, Event, 6 ft. Long

Connects BSM I/O Ports to External Devices.

441000562

1

Ethernet Patch Cord, Shielded, 2 ft. Long

Connects SDS to Ethernet Switch.

605000106

1

Forceps, Reinforced Nylon

For Check Valve Replacement.

410001864

2

Marker Set, Tubing

For Solvent Lines
