200000129 Waters 2414 Refractive Index (RI) Detector Startup Kit

WAT020321

1

Event Cable

Rear Panel External Event Trigger Cable.

WAT025604

1

Compression Fitting, 5 Pack

Fittings for Tubing Connections.

WAT027893

1

Tubing, SST, .062 X .009 X 28

 Inlet Tubing.

WAT051053

1

Tubing, Teflon, .058 X .080 X 120

Waste Tubing.

WAT051329

1

Tubing, SST, .062 X .040 X 60

Spare Valve Tubing.

WAT057235

1

Cable, Analog Out

I/O Connection

330000136

2

FUSE,3.15A,250V,5X20MM FAST-ACTING UL

Spare Fuses for Main Power Supply.

323000223

2

Connector Plug, 13 position

Back Panel Connector.

430000460

1

Tubing Assembly, Sample Inlet

Insulated .009 ID Sample Inlet Tube.

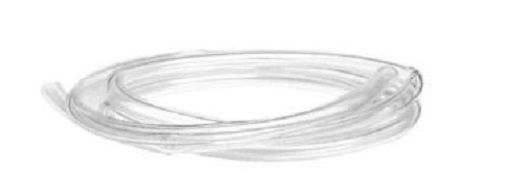

430000619

79"

Tubing, 5/16” X 3/16”, Tygon 2075

Drain Tube – Connect a 36” length to Front Drip Tray Barbed Drain Fitting.  Connect remaining length to Internal Drip Tray Barbed Drain Fitting Elbow under Detector Chassis.

441000456

1

Ethernet Patch Cord, Shielded, 5-ft

To connect instrument Module to Ethernet Switch for communications
