What is the part number for the stainless steel tubing between the vent valve and the T filter assembly on a 2545 Binary Gradient Module? - WKB237221
Article number: 237221
ENVIRONMENT
- 2525/2545 Binary Gradient Module
ANSWER
There are two tubings connected to the T filter assembly and the 8-port vent valve.
The upper tubing is shorter and is part 430001303 (ASSY, TUBE, T-FILTER TO PORT 8).
The lower tubing is longer and is part 430001304 (ASSY, TUBE, T-FILTER TO PORT 4).
ADDITIONAL INFORMATION

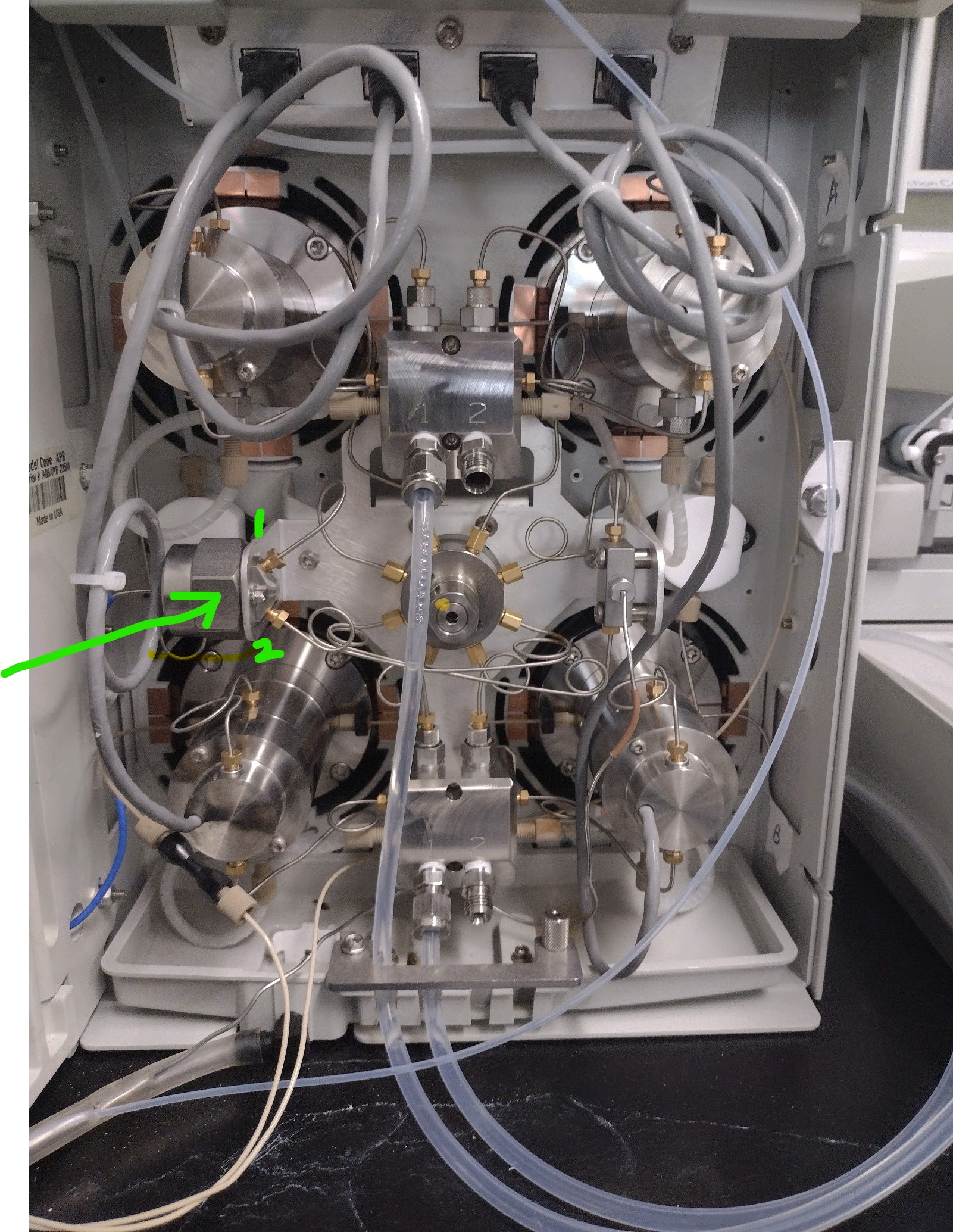

T-Filter labeled with green arrow. Upper tubing is marked 1. Lower tubing is marked 2.
id237221, 2525, 2545, 2545Q
