How to replace a leak sensor on an ACQUITY UPLC Solvent Manager - WKB319885

OBJECTIVE or GOAL

Replace a leak sensor on an ACQUITY UPLC Solvent Manager.

ENVIRONMENT

• ACQUITY APC
• ACQUITY APC Isocratic Solvent Manager
• ACQUITY Arc
• ACQUITY Arc Premier
• ACQUITY UPLC
• ACQUITY UPLC BSM
• ACQUITY UPLC H-Class
• ACQUITY UPLC H-Class Bio
• ACQUITY UPLC H-Class Quaternary Solvent Manager (QSM)
• ACQUITY UPLC I-Class
• ACQUITY UPLC H-Class PLUS
• ACQUITY UPLC H-Class PLUS Bio
• ACQUITY UPLC I-Class PLUS
• ACQUITY UPLC M-Class
• nanoACQUITY UPLC
• ACQUITY Premier System

PROCEDURE

To avoid damaging electrical components and circuitry, do not disconnect an electrical assembly while electrical power is applied to a module.
To completely interrupt power, set the on/off switch to the "off" position, and then disconnect the power cord from the ac source. Wait 10 seconds before disconnecting an assembly.

1. Power-off the solvent manager.
2. Open the solvent manager’s door.
3. Press down on the tab to detach the leak sensor connector from the front of the device.
4. Grasp the leak sensor by its serrations and pull upward on it to remove it from its reservoir.
5. Unpack the new leak sensor.

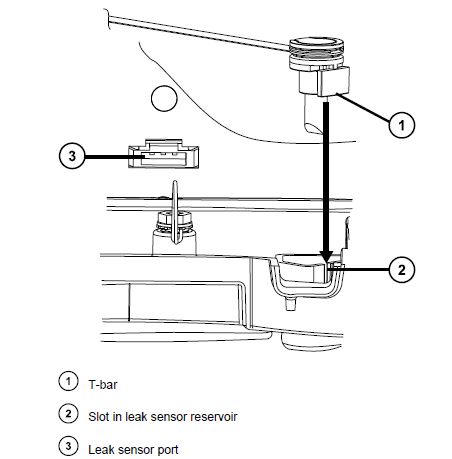

6. Align the leak sensor’s T-bar with the slot in the side of the leak sensor reservoir, and then slide the leak sensor into place.
7. Connect the leak sensor connector to the front of the device.
8. Power-on the solvent manager.
9. In the console, select the solvent manager, and then click Control > Reset to reset the solvent manager.
