Alliance iS system waste tray leaks solvent - WKB283758

SYMPTOMS

• Solvent leaks from system waste tray

ENVIRONMENT

• Alliance iS

CAUSE

Improperly set waste tubing

FIX or WORKAROUND

1. The waste line must be as straight as possible (no loops) and not in contact with waste solvent.
2. Ensure that the solvent cup is pushed down all the way inside the QSM drip tray (on left-hand side) as shown below.
3. Ensure that the blue line is not pushed in too far.

ADDITIONAL INFORMATION

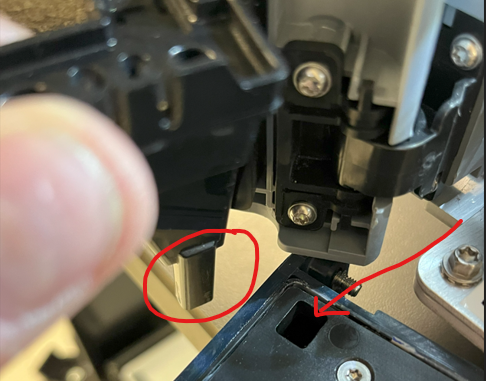

The square drip tub must be pushed all the way into the hole shown below.
