How to bring a Scientific Library into UNIFI - WKB21465

OBJECTIVE or GOAL

Install or import a new Waters scientific library into UNIFI.

ENVIRONMENT

• UNIFI

PROCEDURE

Start with license activation:

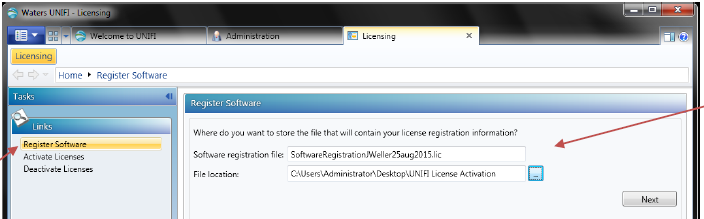

• In Administration, go to Licensing and select Register Software, even if the software has already been registered.
• First specify a name for the registration file and a location to store it by clicking the ....  button. Then select Next.
•
• Register the software with Waters by clicking the registration link:
•
• This brings you to the login page for the Waters website. Log in.
• Select the product category, and then select Next:
•
• Only need to specify the Scientific Library serial number. Select Next:
•
• Select the Browse button to browse to the registration file that was initially named and saved.
•
• Save the activation key by selecting Save License Activation, and then save the long file name.lic file to the PC:
•
• In UNIFI, select Activate Licenses from the Tasks on the left and the .... button to browse to the activation .lic file that was just saved from the website.
•
• When complete, all activated licenses should be listed.

Next, import the library:

• Go to the administration page in UNIFI.
• Under scientific libraries, select manage libraries.
• On the libraries page, select import library items on the left.
• To the right of the file to import box, select the ... button and browse to the library (for example, glycan.ulc) from the Scentific Library DVD (667005436).
• Select import in the bottom-right corner of the page.

ADDITIONAL INFORMATION

Note that the library file is separate from the license and serial numbers.
