OBJECTIVE or GOAL

Ensure that samples in a result set are from the same sample set.

ENVIRONMENT

Empower
Empower Tip of the Week #286

PROCEDURE

STEP 1

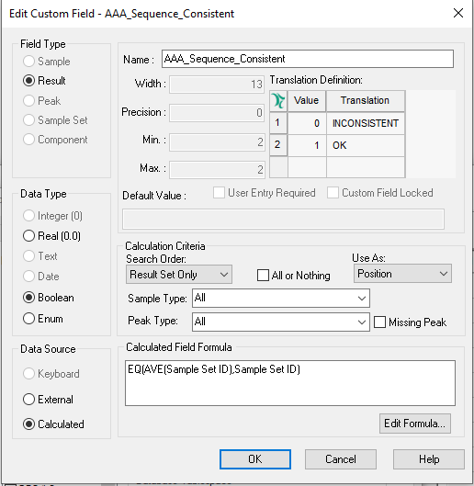

Create a Result Custom Field, data type Boolean. If the average Sample Set ID equals the Sample Set ID, then the custom field will return "OK". If one or more samples have a different Sample Set ID, the custom field will return "INCONSISTENT" (Figure 1).

STEP 2
The returned value for the custom field can be viewed in the Chromatogram Result table in the Results window within Review. You can see the results for both the Instrument Method field created in the last tip and the new one described in Step 1 (Figure 2).

STEP 3
You can create a View Filter on the Results tab of the project window to include both custom fields. This shows that all samples in this sample set were collected with the same instrument method and all samples came from the same sample set (Figure 3).

ADDITIONAL INFORMATION

This can be done with either the Pro or QuickStart interface.
