How to obtain instrument information in Node Properties in Empower 3 - WKB274904
Article number: 274904
OBJECTIVE or GOAL
- Obtain instrument information in Node Properties
ENVIRONMENT
- Empower 3
PROCEDURE
1. Open the Configuration Manager window, from Configure the System button.
2. Select the node in the tree bar on the left side of the Configuration Manager window.
3. From the list on the right side of the Configuration Manager window, click the row number of the LAC/E (or PC) to which the applicable instrument is connected, right-click, and select Properties.

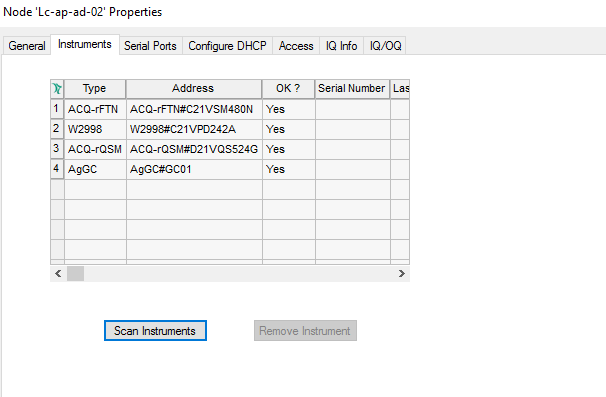

4. Open the Instruments tab on the Node Properties window.
ADDITIONAL INFORMATION
id274904, EMP2LIC, EMP2OPT, EMP2SW, EMP3GC, EMP3LIC, EMP3OPT, EMP3SW, EMPGC, EMPGPC, EMPLIC, EMPOWER2, EMPOWER3, EMPSW, SUP
