Does Waters still sell part number PSL618011 - Double SLIP-FREE Connector, 20cm, 0.010 inch ID (or any other SLIP-FREE Connectors)? - WKB58218

ENVIRONMENT

• Connectors
• SLIP-FREE Connectors
• Fittings

ANSWER

No.

ADDITIONAL INFORMATION

Waters discontinued selling SLIP-FREE connectors in 2018.

Connector options may include the following:

HPLC:

WAT084080 - ASSEMBLY, TUBE JOINING - Stainless steel "U" shape tubing with pre-installed compression screws and ferrules. The ferrules are permanently seated to Waters depth setting upon receipt. Compatible with most traditional Waters HPLC Columns. This tubing's ID is 0.009 inch and OD is 1/16 inch.

WAT022681 - RIGID CONNECTOR PKG - This is a straight stainless steel connector with pre-installed compression screws and ferrules. The ferrules are permanently seated to Waters depth setting upon receipt. Compatible with most traditional Waters HPLC Columns. This tubing's ID is 0.005 inch and OD is 1/16 inch.



HPLC or UPLC:

U-Shaped:

700009535 - ASSY, TUBE, .004 ID, COL. CONN., "U"

Ferrules are not staked on tubing upon receipt.

The two-piece ferrule is permanently seated upon installation once the fitting is tightened into the column.



Offset U-Shape:

700009534 - ASSY,TUBE,.004 ID,COL. CONN., OFFSET "U"

Ferrules are not staked on tubing upon receipt.

The two-piece ferrule is permanently seated upon installation once the fitting is tightened into the column.



Straight:

700009524 - ASSY, TUBE, .005 ID, COL. CONN., INLINE

Ferrules are lightly staked on tubing upon receipt.

The two-piece ferrule is permanently seated upon installation once the fitting is tightened into the column.



186006613 - .005"x1.75" UPLC Connection Tubing, 2 PK

Ferrules are lightly staked on tubing upon receipt.

The two-piece ferrule is permanently seated upon installation once the fitting is tightened into the column.

OPTIONAL: The following fitting kit and related appropriate tubing requires tubing cutter to cut proper length to connect to inlet of column:

For UPLC:

For UPLC column inlet connection:

700003139 -  KIT, FITTING, REUSE 10-32, FINGER TIGHT (Slips onto tubing with an OD of 1/16 inch).

For UPLC column outlet connection:

700004841 -  FITTING, 10-32, ONE-PIECE, MODIFIED 10PK

For HPLC:

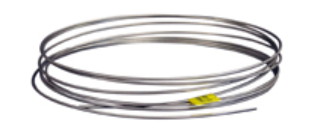

WAT241039 - TUBE,SS .062X.005X120"

OR

WAT026973 - TUBE SS .062X.009X10FT

WAT022384 1/16" OD SS TUBING CUTTER +3 Blades

For inlet or outlet of HPLC Columns (Stainless Steel):

WAT005070 - COMP SCREW SS 10/PK

WAT005063 - FERRULE 01 ANNEAL SS 10/PK

For inlet or outlet of HPLC Columns (PEEK):

186008714 - PEEK Finger-tight Fitting, 10-32, 1 ea

For outlet of UPLC columns:

Related videos:

Column Videos  (Shows fittings videos, how to connect columns)
